NSX-T 2.0 – Deploying NSX Controller

NSX controllers controls virtual networks and overlay transport tunnels. NSX Controllers are deployed as a cluster of highly available vApps that are responsible for the automated deployment of virtual networks across the entire NSX-T architecture and  to achieve high availability of control plane the NSX Controllers are deployed in a cluster of three instances.

Deploying the NSX Controller is almost similar to deploying the NSX Manager appliance. I’ve deployed one NSX Controllers onto the same network as the NSX Manager.

Let’s Start Deploying Controller:

1 – First login to ESXi using HTML5 Client and run the New Virtual Machine wizard and select “Deploy a virtual machine from an OVF or OVA file”



C1

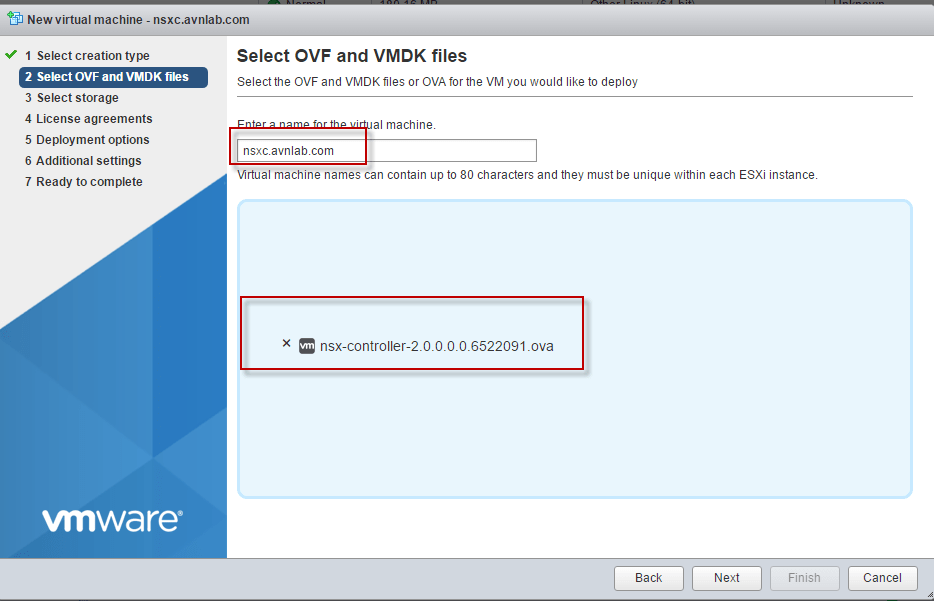

2 – Enter the name for the NSX-T Controller appliance (nsxc.avnlab.com) and choose NSX-T controller appliance OVA (nsx-controller-2.0.0.0.0.6522091.ova)

c2

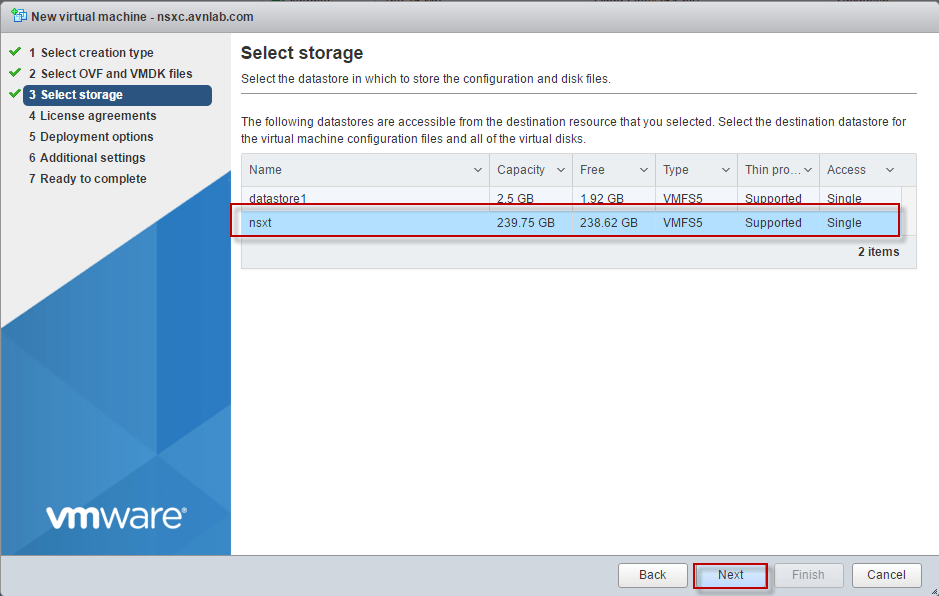

3 – Choose your storage

c3

4 – Choose your Network and disk type

c4

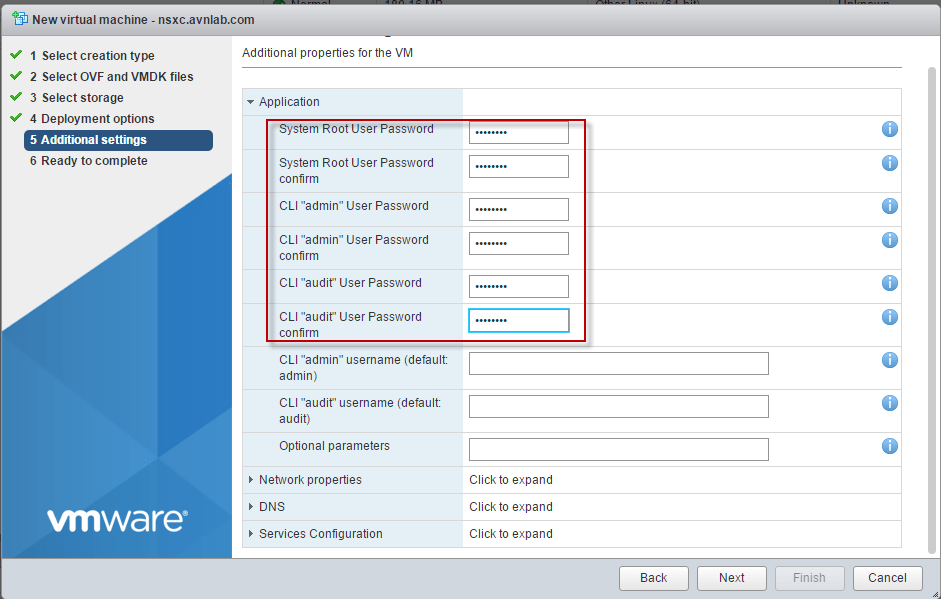

5 – Enter various password for “Root User” , “admin User” and “audit User” , we need to setup a complex password.Password complexity requirements are as below:

  • At least eight characters
  • At least one lower-case letter
  • At least one upper-case letter
  • At least one digit
  • At least one special character
  • At least five different characters
  • No dictionary words
  • No palindromes

c5

6 – in the same window Enter the “Host Name”, Default Gateway, IP address and Other network related information.

c6

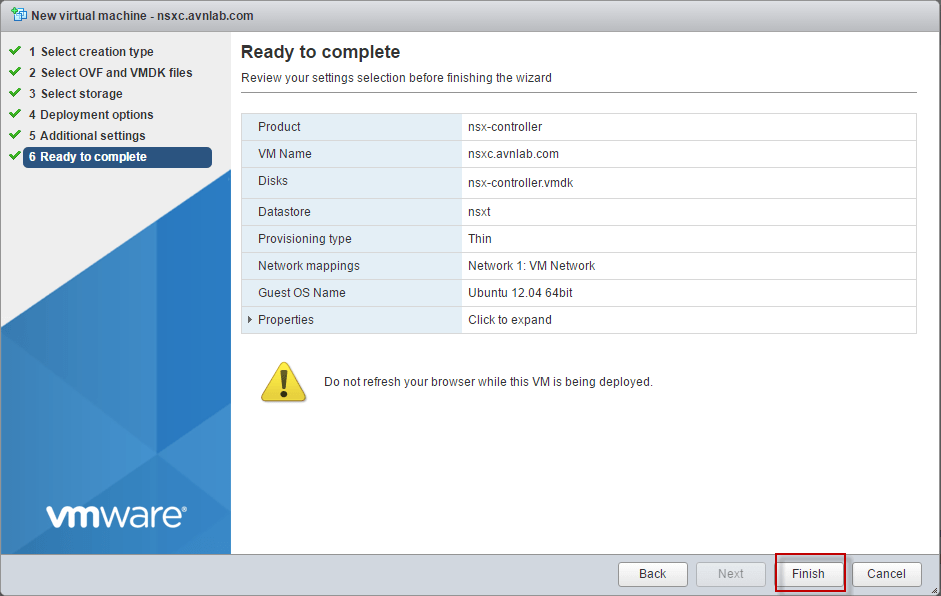

7 – Review the configuration and click Finish

c7

8 – it will take some time and once ova import completes  , you are done.

c8

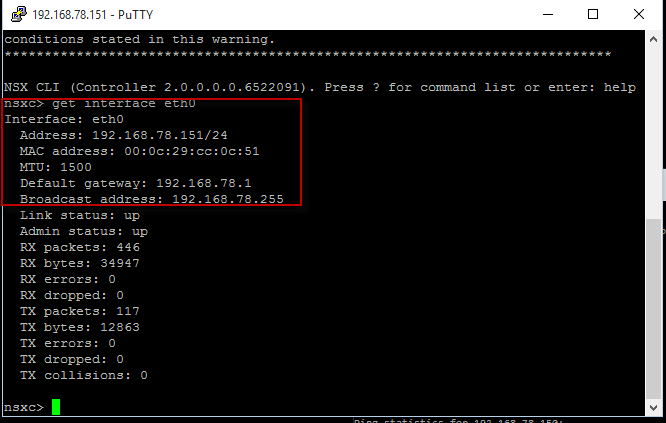

Validate Controller Network Configuration as below:


Connect Controller Cluster to NSX Manager

Get NSX Manager API thumbprint

  1. Log onto the NSX Manager via SSH using the admin credentials.
  2. Use get certificate api thumbprint to get the SSL certificate thumbprint. Copy the output to use later
  3. 2.png

Join NSX Controller to NSX Manager



  1. Log on to the NSX Controllers via SSH using the admin credentials.
  2. Use join management-plane <NSX Manager> username admin thumbprint <API Thumbprint>
  3. 3
  4. command will prompt for “admin” password.
  5. Once entered , wait for some time , if all goes well then you will see below “successful” message .
  6. 4
  7. Enter command on NSX Controller as “get managers” to view the connection to Manager
  8. 5
  9. On NSX manager run command “get nodes” to view registration is successful..
  10. 6.png
  11. From the command line using command “get management-cluster status ” you can see the details and their status  –  Controllers is listed in the control cluster, but the cluster status is “UNSTABLE”.
  12. 7.png

Configure the Controller Cluster:

To configure the Controller cluster you need to log on to any of the Controllers and initialise the cluster. Since this i am deploying in my Home Lab and have a single cluster , so let’s login to Controller and initialize the the cluster.



  1. Log onto the Controller node via SSH using the admin credentials.
  2. Use set control-cluster security-model shared-secret to configure the shared secret
  3. 8.png
  4. after the secret is configured, use initialize control-cluster to promote this node as Master controller
  5. 9

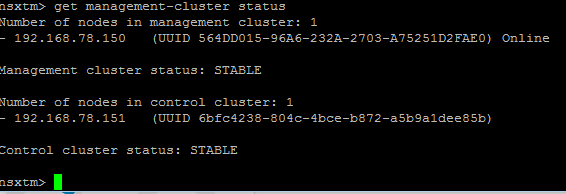

  6. Now , if you see “Control Cluster Status” is “Stable”
  7. 10.png
  8. you can also view in GUI console also..
  9. 11.png

so now we have completed NSX manager installation , NSX controller installation and their integration.

Happy Learning 🙂
