Whats new with VMware PKS v1.3

Last week VMware announced release of PKS 1.3 , which has some of the much awaited features  like enhance multi-cloud support, additional networking and security options, ease of management and operations. Few features i am going to discusses here:

Microsoft Azure support as IAAS

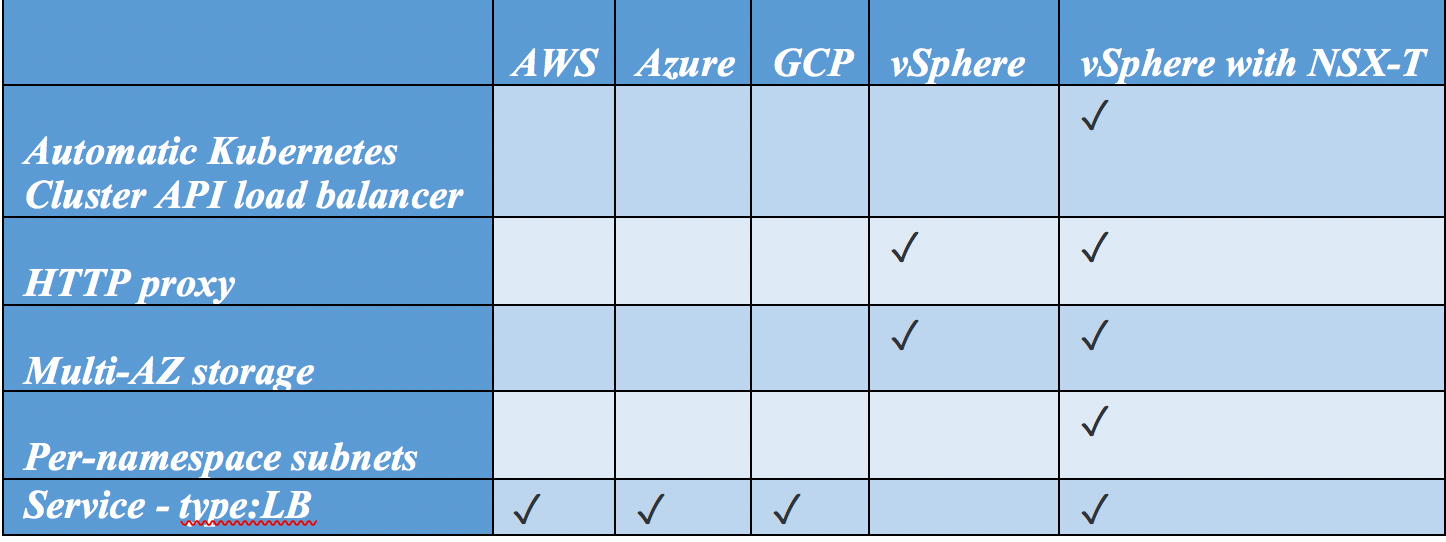

VMware PKS already support VMware vSphere , Google Cloud Platform and Amazon EC2 as supported platform for PKS deployment , in this new VMware PKS 1.3 release introduces support for Microsoft Azure. so now you can deploy production grade kubernetes from a single console to your choice of IAAS. Here is the list of features supported by PKS on different IAAS.


Kubernetes 1.12 Support

if you see kubernetes 1.12 release notes around 60+ enhancement and features has been introduced so it make all the sense to upgrade to Kubernetes 1.12.4.

Backup and Recovery of Kubernetes Clusters

This release supports backup and recovery of Kubernetes clusters when they are deployed in a single master mode. You can recover Kubernetes clusters and stateless workloads by using the BOSH Backup and Restore (BBR) toolset.

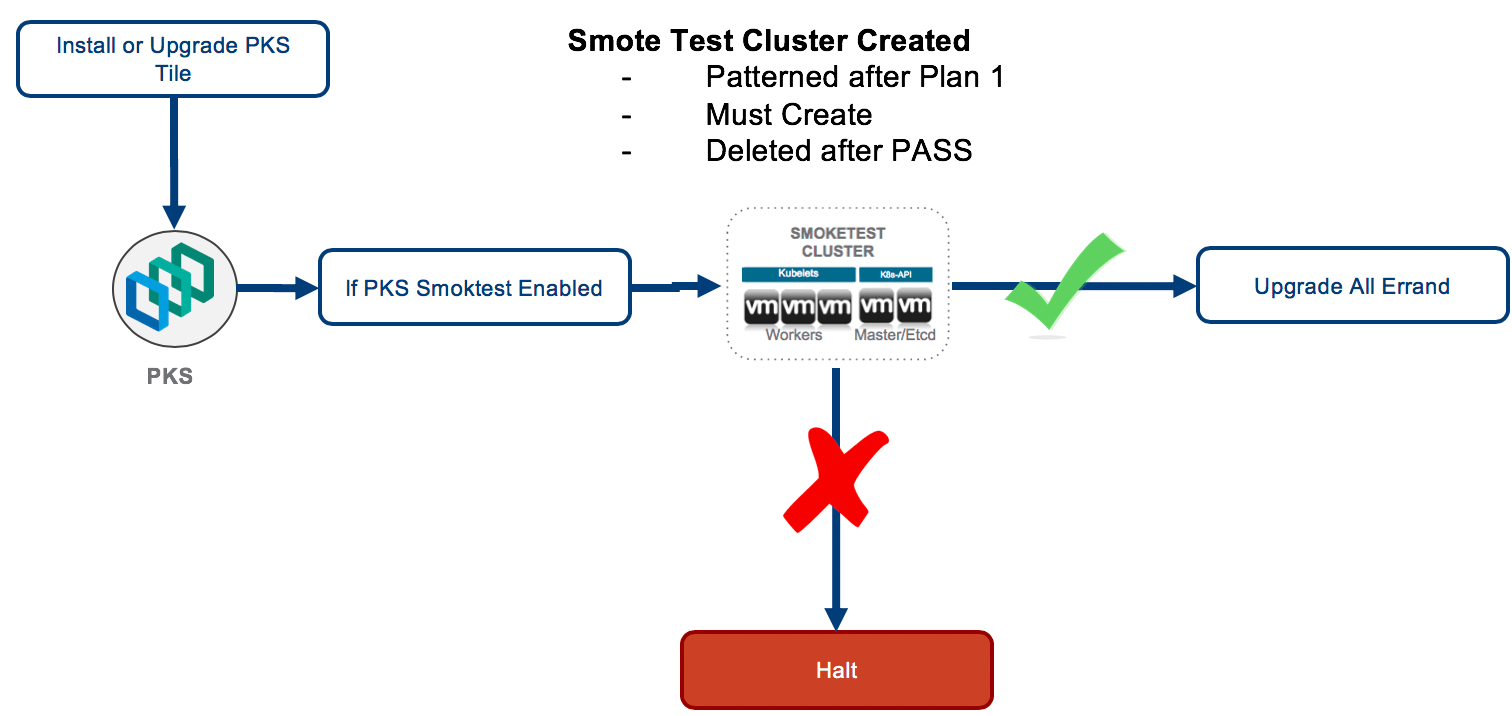

Smoke Tests

Smoke tests let you assess the impact of an upgrade before actually upgrading running clusters.The smoke tests create an ephemeral Kubernetes cluster after each upgrade of VMware PKS, but before applying upgrades to running Kubernetes clusters. This ensures that a test cluster can be provisioned and basic Kubernetes functionality validated with the upgraded software before applying the upgrade to the running clusters. Upon successful completion of the smoke test, the test cluster is deprovisioned to reduce resource consumption, and upgrades then proceed on the running clusters.

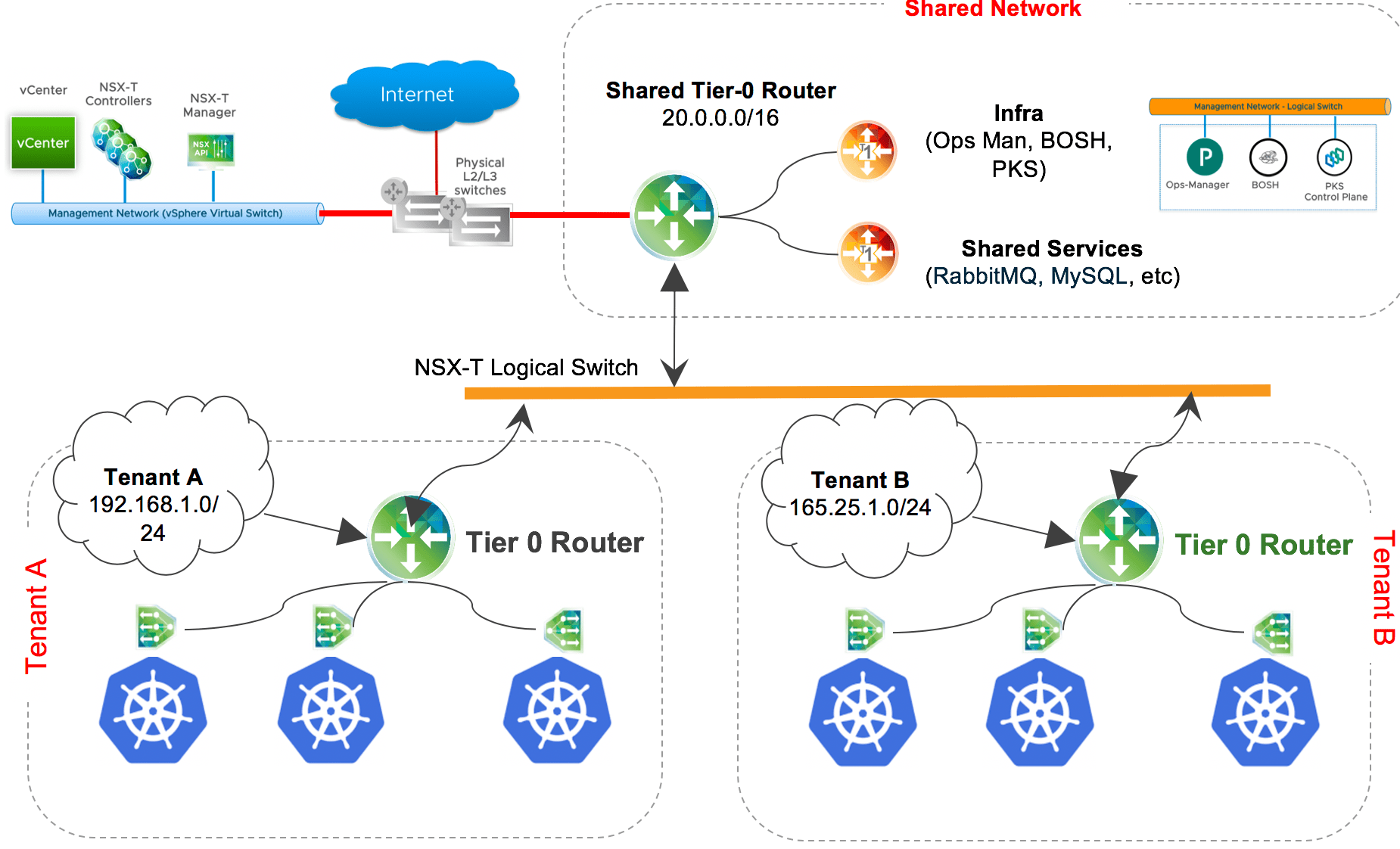

Support for Multiple Tier 0 and Selectable Tier 0 Routers

As you know NSX-T Tier 0 edges connects the physical and virtual networks. A single VMware NSX-T instance can support multiple Tier 0 routers. By deploying Kubernetes clusters across multiple Tier 0 routers service providers get better network isolation between tenants and additionally  service providers can use multiple Tier 0 routers which allows them to use overlapping IP address ranges, providing greater autonomy to tenants in choosing IP address ranges for their services.

With this VMware PKS 1.3 release, now provider/customer can specify a Tier 0 router using the network profile when you create a cluster (pks create cluster). The Kubernetes clusters and all networking objects that are created or configured as part of the cluster such as a load balancer, Tier 1 routers, and SNAT rules are created on this Tier 0 router. Given that a single Tier 0 router can support a finite set of such networking objects, use of multiple Tier 0 routers allows much greater scale.


Support for Larger Load Balancers

Previous versions of VMware PKS, we can only specify small or medium load balancers. now with VMware PKS 1.3 , it adds support for large load balancers. large load balancers provides higher scale in areas like number of services, number of backend pods per service, and throughput per service.

Routable CIDR blocks for Pod Networks

Routable IP addresses assigned to pods provide traceability of workloads making egress requests. also routable IP addresses provide direct ingress access to pods for some of the specialized workloads. With VMware PKS 1.3, at the time of Kubernetes cluster creation, you can specify whether you need the pods to be routable or non-routable (NAT’ed) by using the network profile.

Specific IP Address Range and Subnet Size for Pod IP Addresses

VMware PKS 1.3 allow you to override the global pod IP address block configured for VMware PKS with a custom IP address block range along with a custom subnet size. This feature helps in where your global IP address range for pods is reaching capacity and you need to deploy new Kubernetes clusters or you need a larger or smaller size subnet for each namespace being created within a cluster.

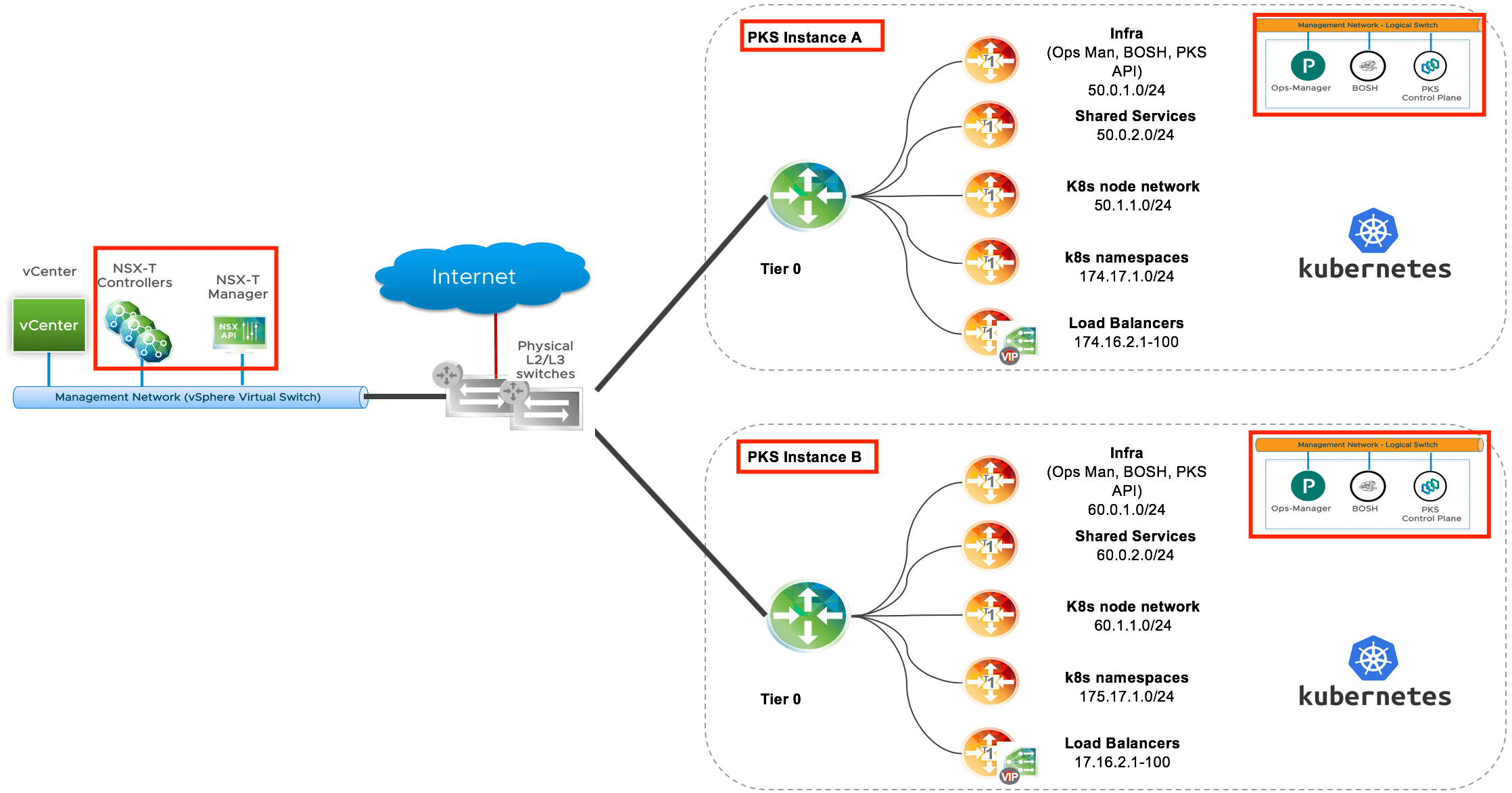

Multiple VMware PKS Control Planes across a Single NSX-T Instance

With this new release, multiple instances of VMware PKS can be deployed on a single shared NSX-T instance. Each instance of the VMware PKS control plane can be deployed on a dedicated NSX-T Tier 0 router to provide complete end-to-end isolation. With this feature, users can dedicate separate VMware PKS instances to their development, staging, and production environments or cloud provider can offer dedicated PKS as a Service to their customer.


Harbor 1.7

Harbor is an VMware’s contribution to open source community , Harbor is open source cloud native registry that stores, signs, and scans container images for vulnerabilities. Harbor solves common challenges by delivering trust, compliance, performance, and interoperability. with PKS 1.3 , Harbor 1.7 has been shipped and offers below enhancements like:

  • Support deploy Harbor with Helm Chart, enables the user to have high availability of Harbor services.
  • Support on-demand Garbage Collection, enables the admin to configure run docker registry garbage collection manually or automatically with a cron schedule.
  • Support Image Retag, enables the user to tag image to different repositories and projects, this is particularly useful in cases when images need to be retagged programmatically in a CI pipeline.
  • Support Image Build History, makes it easy to see the contents of a container image.
  • Improve user experience of Helm Chart Repository:
    • Chart searching included in the global search results
    • Show chart versions total number in the chart list
    • Mark labels to helm charts
    • The chart can be deleted by deleting all the versions under it

Monitoring with vRealize Operation Manager

With the integration of cAdvisor, vRops can be used to monitor entire cloud native infrastructure with the help of vRops Management Pack for Containers.


Sink resources include both pod logs as well as events from the Kubernetes API. These events are combined in a shared format that provides operators with a robust set of filtering and monitoring options. Now inbuilt Support for creating sink resources with the PKS Command Line Interface.

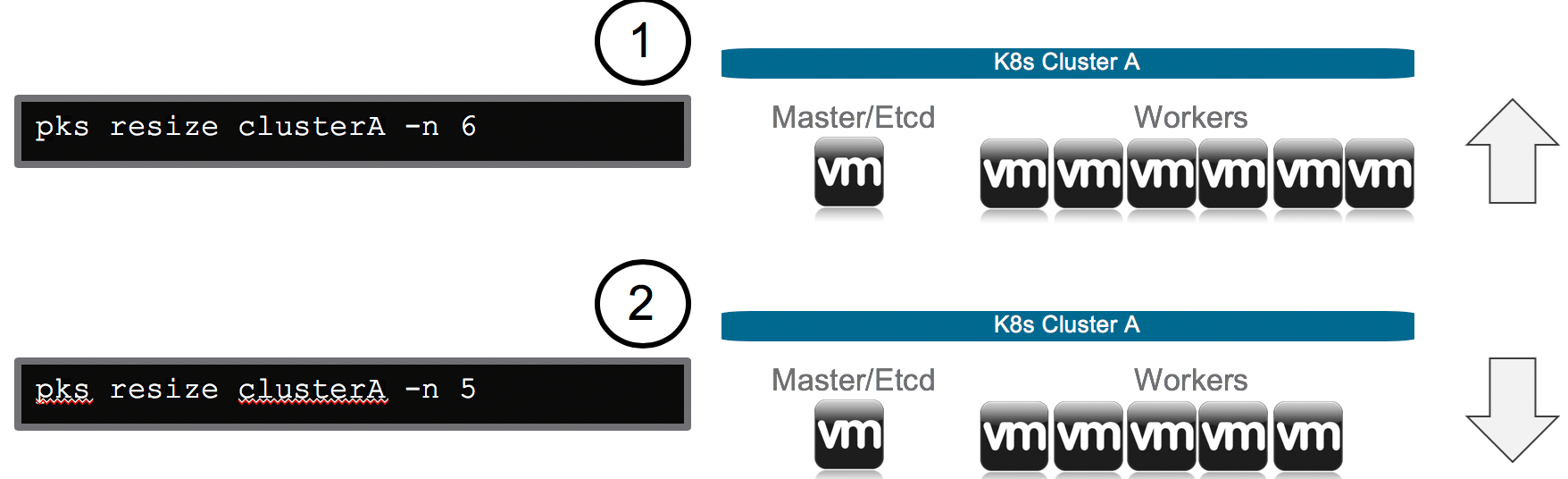

Workers Scale up and down

with this version kubernetes cluster’s worker node can easily be scaled up and down with a single command like:


These are the some of the important features which i like to share , for details feature list check Release note here.
